FCP B-LINE
FCP B-Line

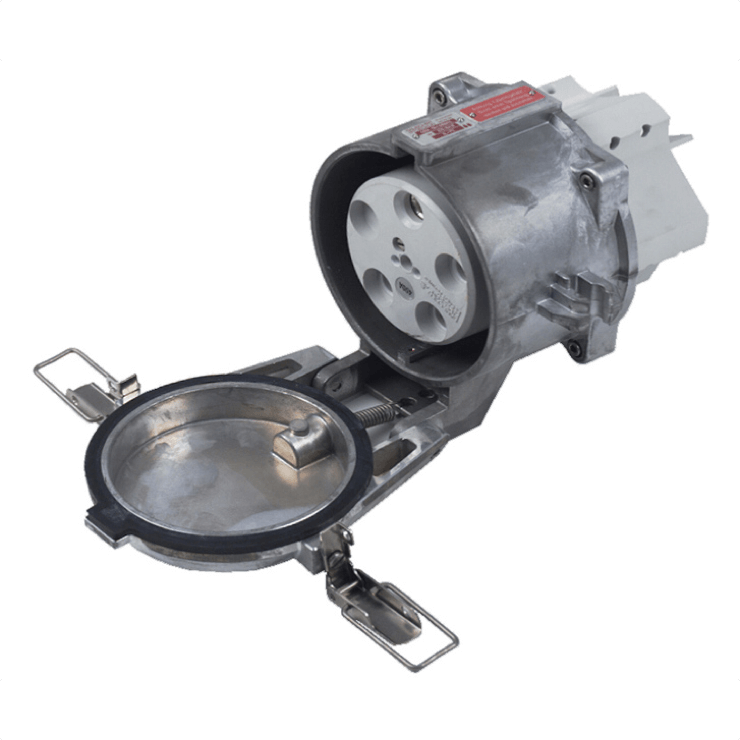

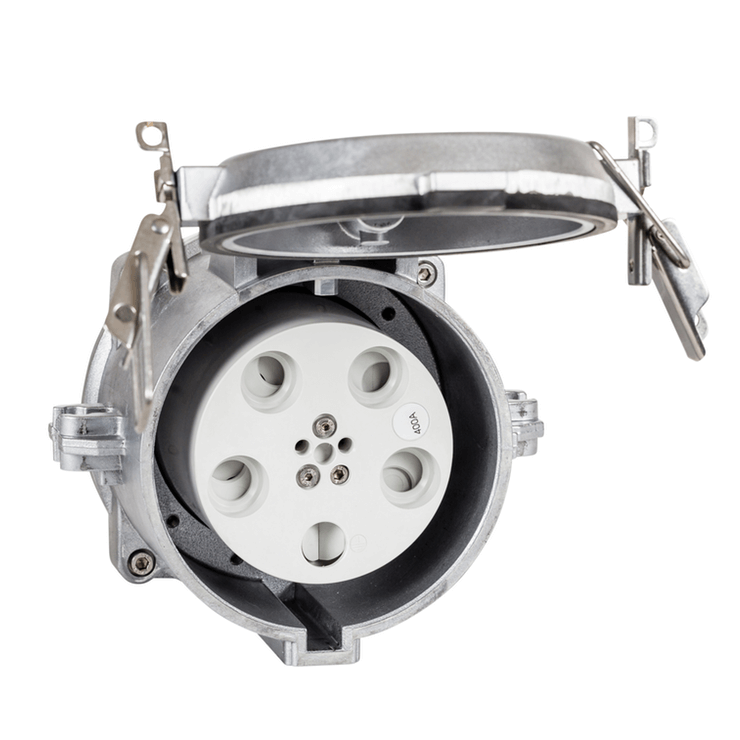

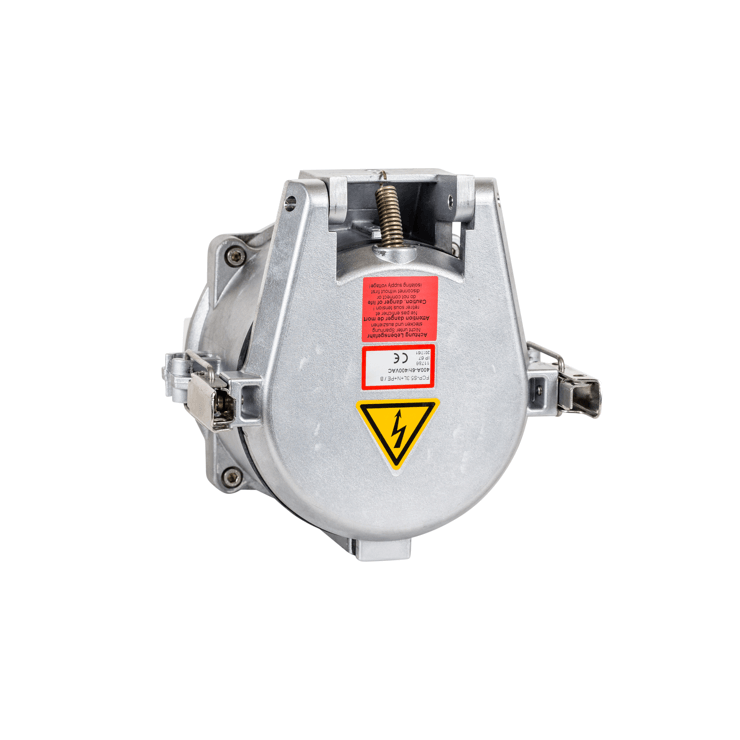

The fixed installation panel-mount socket is used in switchgear, construction machinery, and industrial buildings. Its robust design, high load capacity, and reliable connection technology ensure maximum safety and long-term functionality, even under demanding conditions.
Technical Data
CURRENT :
250A / 315A / 400A
VOLTAGE :
230V / 400V / 500V / 690V / 1000V
POLES :
4P / 5P
PROTECTION CLASS :
IP67
AMBIENT TEMPERATURE :
-40°C up to 100°C
MECHANICAL PROTECTION CLASS :
IK 10
CONNECTION CROSS-SECTION :
35-150mm2
CABLE DIAMETER :
34-66mm
