FCPA A-LINE
FCPA A-Line

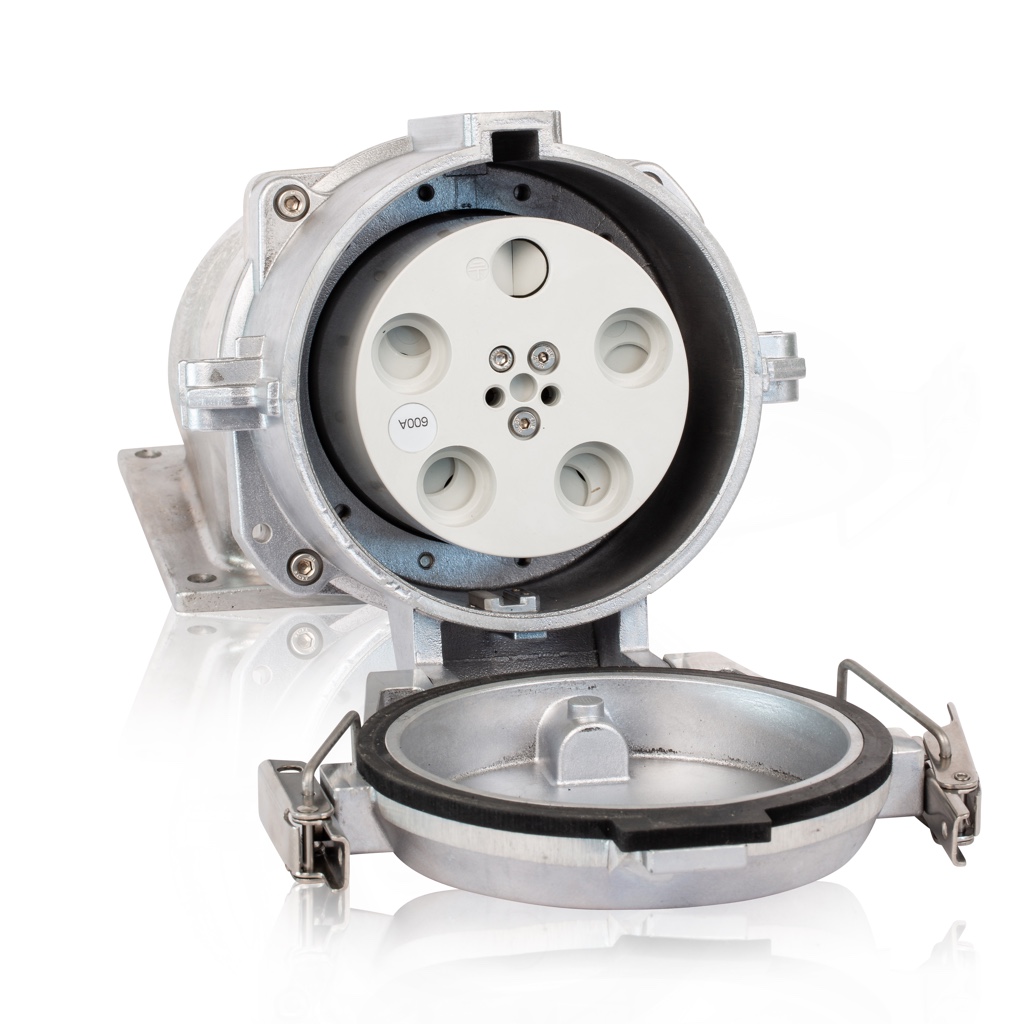

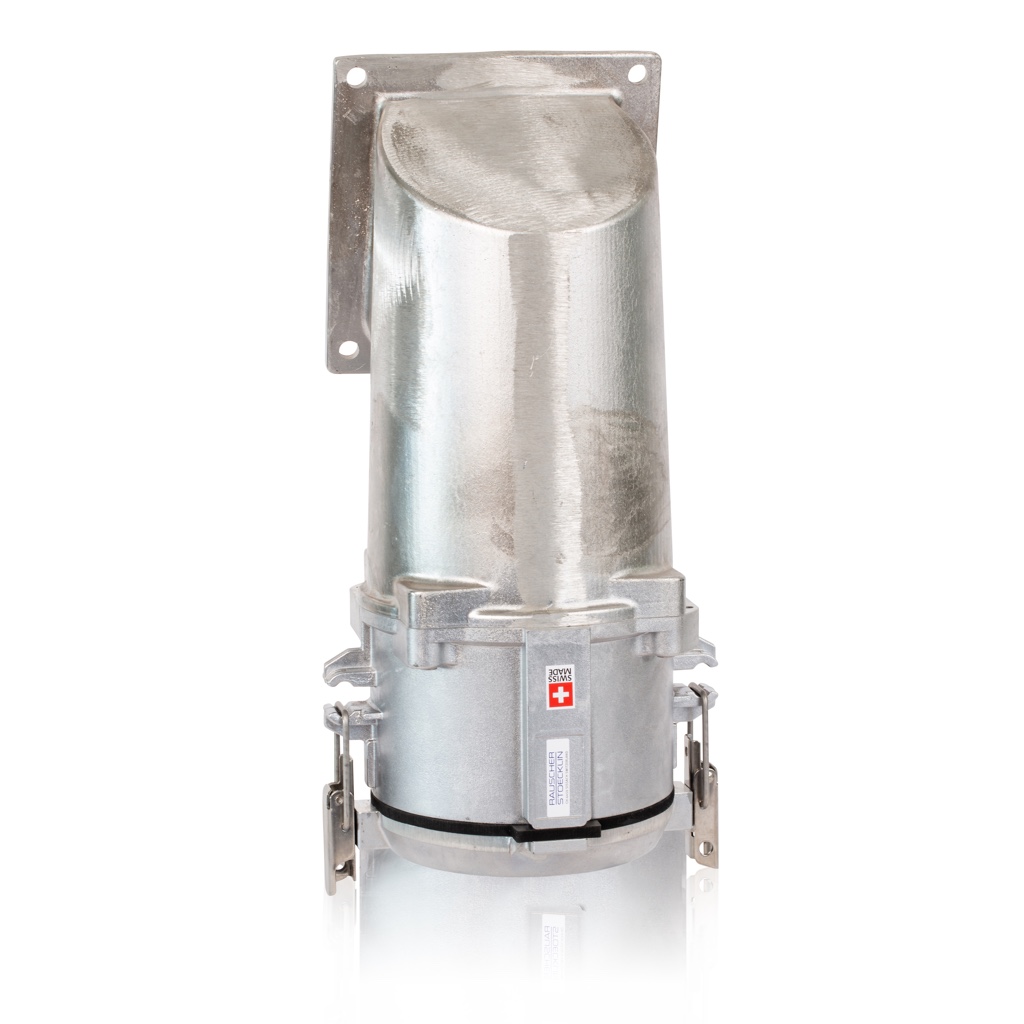

The angled panel-mount socket is used in switchgear, construction machinery, and industrial buildings. Its special design allows for particularly easy connection to the coupling, while its robust construction, high load capacity, and reliable connection technology ensure maximum safety and long-term functionality, even under demanding conditions.
Technical Data
CURRENT :
500A / 600A
VOLTAGE :
230V / 400V / 500V / 690V / 1000V
POLES :
4P / 5P
PROTECTION CLASS :
IP67
AMBIENT TEMPERATURE :
-40°C up to 100°C
MECHANICAL PROTECTION CLASS :
IK 10
CONNECTION CROSS-SECTION :
35-150mm2
CABLE DIAMETER :
34-66mm
